本系列产品是我公司在吸取了国内外的先进技术后优化设计的新产品,该系列产品可处理粒度不大于120-300毫米,破碎抗压强度不超过320兆帕的花岗岩、玄武岩、石灰岩等物料。具有破碎比大、破碎效率高、维修方便等特点。经破碎的物料呈立方体,是高等级公路、铁路、水利、机场、建筑等行业生产优质石料的设备。 具有硬岩破碎、无键联接、高效板锤、独特的齿式反击衬板。

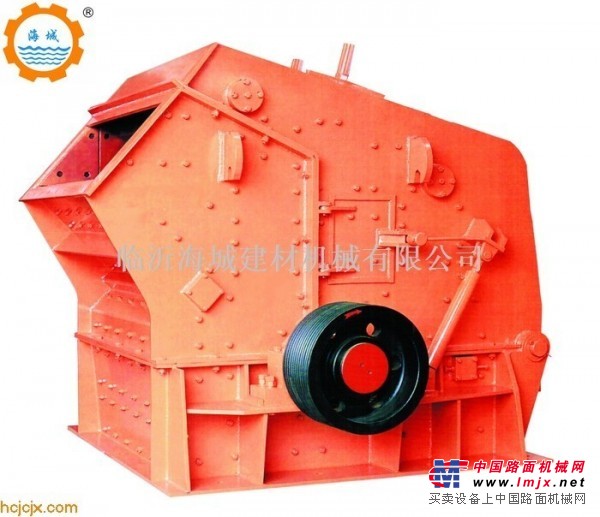

PF series impact crusher
This product is a new product of our company optimized design and manufactured after absorbing the advanced technology at home and abroad. It can crush materials with the size of less than 220-300mm; the highest anti-pressure strength is 320MPa, such as granite, basalt, limestone etc. It has features of high operating efficiency, low operating cost, easy maintenance etc. The crushed material is in cubical shape, which is preferred equipment for highways, railways, water conservancy, airport, building materials etc. It has hard rock crushing, no-board connection, high efficiency blow bar, special impact plate.
1、工作原理
该机是一种利用冲击能来破碎物料的破碎设备。设备在电机的带动下转子作高速旋转,当物料进入板锤作用区时,受到板锤的高速冲击使被破碎物不断被抛向安装在转子上方的反击装置上,然后又从反击衬板上弹回到板锤作用区重新被反击,物料由大到小在破碎区内重复进行破碎。直到物料被破碎至所需粒度,由机器下部排出。
1. Operating Principle
This machine crushes materials with impact force. When the materials get into the area where the bow bar plays, they are crushed due to high speed impact of blow bar and are thrown to the impact plate on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. The materials from large to small get into the impact cavity for being crushed repeatedly. The process is going on until the materials are crushed to the required sizes and then discharged from down part of the machine.
2、性能特点
(1)破碎比大,破碎效率高。
(2)无键连接,高铬板锤。
(3)独特的反击衬板。
(4)产品形状成立方体。
(5)维护简易,运行可靠。
(6)出料粒度大小可调。
2. Features
(1) High reduction ratio and crushing efficiency.
(2) No-board connection; high chromed blow bar.
(3) Impact plate with a special shape.
(4) Crushed product with cubical shape.
(5) Easy maintenance and reliable operation.
(6) Discharge sizes can be adjusted.
3、主要技术参数
Technical data
Model |
转子规格 Roller Diameter (mm) |
进料口尺寸 Feed Opening (mm) |
进料粒度 Max. Feeding Size (mm) |
生产能力 Capacity (t/h) |
电机功率 Motor Power (Kw) |
外形尺寸 Overall Dimension |
PF-1007 |
Φ1000*700 |
400*730 |
300 |
37-50 |
30-55 |
2400*1560*2600 |
PF-1010 |
Φ1000*1050 |
400*1080 |
350 |
55-80 |
55-75 |
2440*2250*2650 |
PF-1210 |
Φ1250*1050 |
400*1080 |
350 |
60-120 |
110-132 |
2700*2340*2900 |
PF-1214 |
Φ1250*1400 |
400*1430 |
350 |
130-180 |
132-160 |
2700*2690*2890 |
Φ1300*1500 |
860*1520 |
350 |
150-220 |
150-220 |
3100*3280*2670 |
